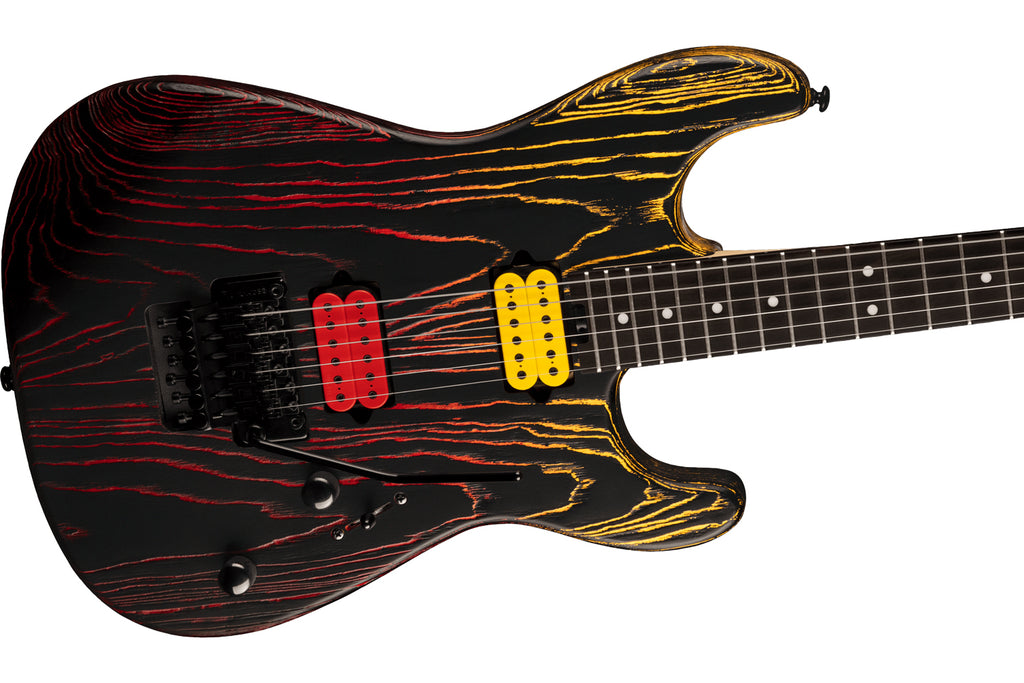

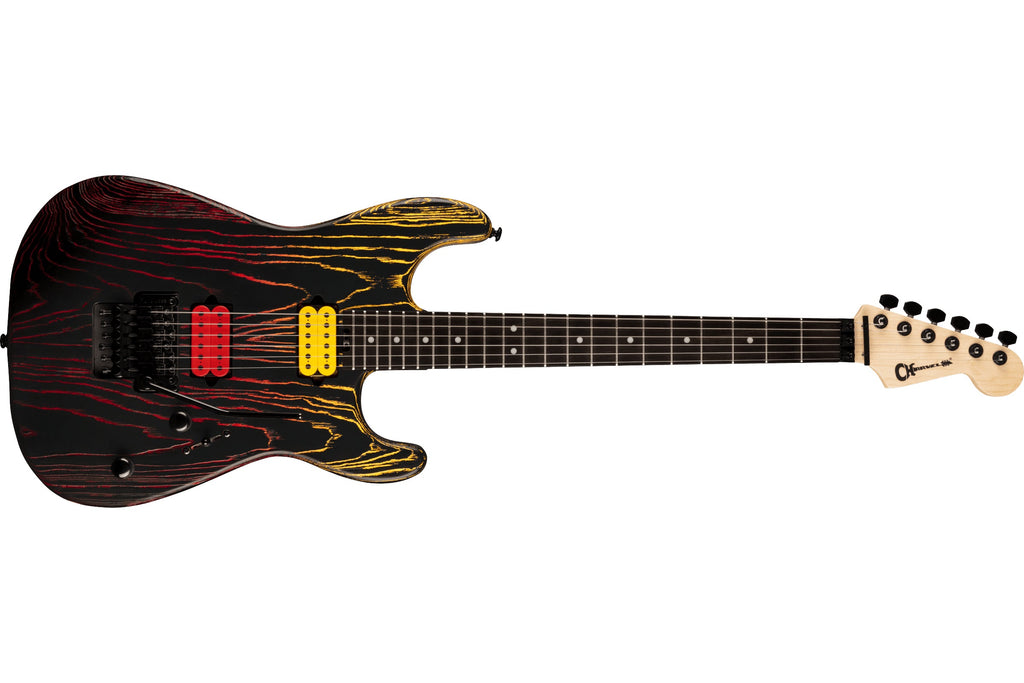

Charvel Pro-Mod San Dimas Style 1 HH FR E ASH
SKU: F297-0011-504
The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the Pro-Mod San Dimas® Style 1 HH FR E Ash boasts scorching sound, stunning style and grin-inducing playing feel and performance.
The San Dimas sandblasted ash body is coupled with a bolt-on maple neck featuring a pair of graphite-reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius ebony fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.
This axe features an HH pickup configuration and comes loaded with DiMarzio® Super Distortion® DP100 bridge and DiMarzio PAF Pro® DP151 neck pickups. The bridge pickup is an ideal blend of full lows, defined mids and soaring highs that can handle lead or rhythm playing, while the neck pickup rips with intense mid and high frequencies that pairs well with a high-gain amp.
Explore this instrument’s versatile voice with a three-way pickup blade switch, tone control and a volume control that conceals a push/pull coil split for even more tonal variations on tap. With the Floyd Rose® 1000 Series double-locking tremolo bridge system, you can also dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning.
Destined for center stage, the Pro San Dimas Style 1 HH FR E Ash comes in a grain-filled shocking Neon Pink Ash finish with pink pickup bobbins, black hardware and a licensed Fender® Strat® headstock.
SPECS
GENERAL
Model Number |
2970011504 |
Series |
Pro-Mod |
Color |
Sunburn |
Number of Strings |
6 |
Orientation |
Right-Hand |
ELECTRONICS
Bridge Pickup |
DiMarzio® Super Distortion® DP100 |
Neck Pickup |
DiMarzio® PAF Pro® DP151 |
Pickup Color |
Red (Bridge), Yellow (Neck) |
Controls |
Volume (Push/Pull Coil Split), Tone |
Pickup Switching |
3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil |
Pickup Configuration |
HH |
BODY
Body Finish |
Satin |
Body Shape |
San Dimas® Style 1 |
Body Material |
Ash |
HARDWARE
Bridge |
Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed) |
Hardware Finish |
Black |
Tremolo Arm |
Floyd Rose® 1000 Series Locking |
Tuning Machines |
Charvel®-Branded Die-Cast |
Pickguard |
None |
Control Knobs |
Dome-Style |
Switch Tip |
Black |
Saddle Height Wrench |
N/A |
NECK
Neck Material |
Maple |
Neck Construction |
Bolt-On with Graphite Reinforcement |
Neck Finish |
Satin |
Neck Shape |
Speed Neck with Rolled Fingerboard Edges |
Neck Binding |
None - Rolled Fingerboard Edges |
Scale Length |
25.5" (64.77 cm) |
Fingerboard Radius |
12"-16" Compound Radius (304.8 mm to 406.4 mm) |
Fingerboard Material |
Ebony |
Number of Frets |
22 |
Fret Size |
Jumbo |
Nut Material |
Floyd Rose® 1000 Series Locking |
Nut Width |
1.6875" (42.86 mm) |
Position Inlays |
White Dot |
Side Dots |
White |
Truss Rod Nut |
Heel-Mount Truss Rod Adjustment Wheel |
String Trees |
Floyd Rose® Retainer Bar |
Headstock |
Licensed Fender® Stratocaster® |
Neck Plate |
4-Bolt Serialized |
MISCELLANEOUS
Strings |
Nickel Plated Steel (.009-.042 Gauges) |
Strap Buttons |
Standard |
