EVH Wolfgang USA Edward Van Halen Signature
SKU: F510-7920-868

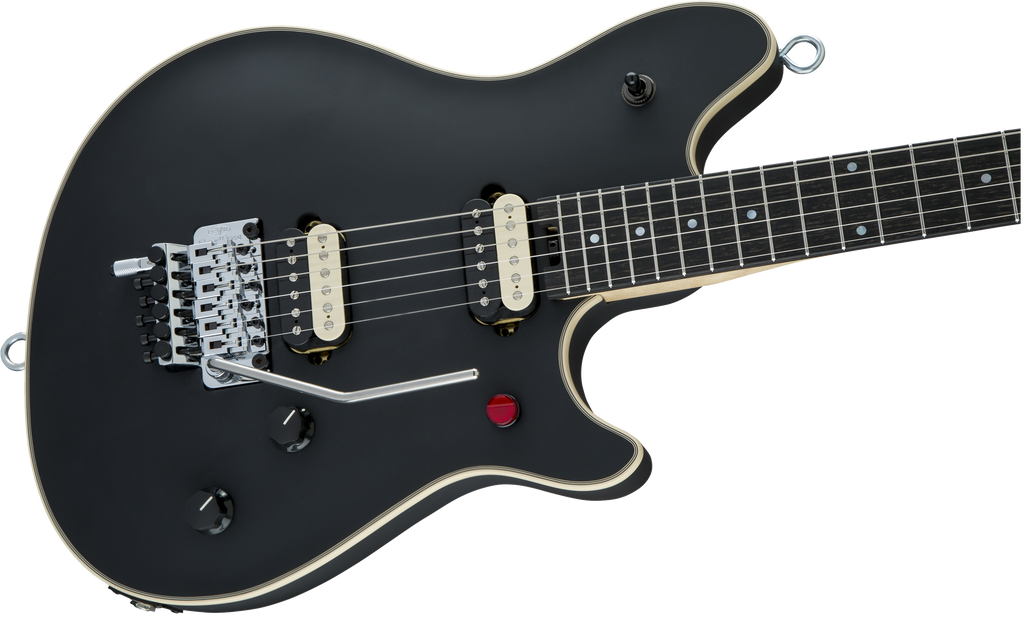

The basswood body features a big-leaf maple top and five-ply binding, while the bolt-on quartersawn maple neck is sculpted to Eddie’s precise specs, with graphite reinforcement and a hand-rubbed back finish for smooth, fast playability. The compound-radius (12”-16”) ebony fingerboard has 22 vintage stainless steel frets, pearloid (Ivory finish) or dot (Stealth finish) inlays, and a convenient heel-mounted truss rod adjustment wheel.
Experience scorching and well-balanced tone with a custom-wound alnico 2 EVH® Wolfgang® Humbucker in the bridge and a newly added alnico 3 custom-wound EVH® Wolfgang Humbucker in the neck, both controlled by a special reverse oriented three-way toggle switch. Stutter-stop à la “You Really Got Me” with the red-button killswitch and play “Cathedral” without any crackle or pop, courtesy of the EVH High Friction (Tone) Pot and an EVH “HPU” or High Performance Upgrade, custom-made Low Friction (Volume) Pot.
Sturdy and steadfast, the EVH-branded Floyd Rose® locking tremolo provides endless sustain and precise tuning regardless of how many dive bombs you rip or how drastically you attack your whammy-bar. The EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger, with a low-friction volume control for smooth swells and a high-friction tone control that prevents accidental tone shifting.
Boasts elegant and classic style in Ivory or Stealth with chrome hardware, black speed knobs and dog leash strap/eye-bolt clasps. Hardshell EVH Striped SKB case and EVH leather strap included.
SPECS
Model Name: Wolfgang® USA Edward Van Halen Signature, Ebony Fingerboard, Stealth
Model Number: 5107920868
Series: Wolfgang® USA
Color: Stealth Black
BODY
Body Shape: Wolfgang®
Body Binding: 5-Ply
Body Material: Basswood with Big Leaf Maple Top
Body Finish: Satin Urethane
Body Back: Basswood
Body Top: Big Leaf Maple
NECK
Neck Material: Quartersawn Maple
Neck Shape: Wolfgang Backshape, .805" @ 3rd Fret / .890" @ 12th Fret
Scale Length: 25.5" (648 mm)
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Number of Frets: 22
Fret Size: Vintage Stainless
String Nut: Floyd Rose® Locking
Nut Width: 1.650" (42 mm)
Headstock: EVH®-Branded
Neck Plate: NA
Neck Finish: Hand-Rubbed Urethane Gel
Fingerboard: Ebony
Position Inlays: Pearloid Dot
ELECTRONICS
Bridge Pickup:EVH® Wolfgang® Humbucking
Neck Pickup: EVH® Wolfgang® AL3 Humbucker
Controls: EVH® BI Tech HPU Low Friction Volume, EVH® Bourns High Friction Tone
Pickup Switching: EVH Reverse-Style 3-Position Switching: Position 1: Neck Pickup, Position 2: Neck and Bridge, Position 3:Bridge
Pickup Configuration: HH
HARDWARE
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH D-Tuna®
Tuning Machines: EVH®-Branded
Orientation: Right-Hand
Hardware Finish: Chrome
Pickguard: N/A
Control Knobs: Black "Speed" Knobs
MISCELLANEOUS
Strings: EVH® Branded (.009-.042 Gauges)
